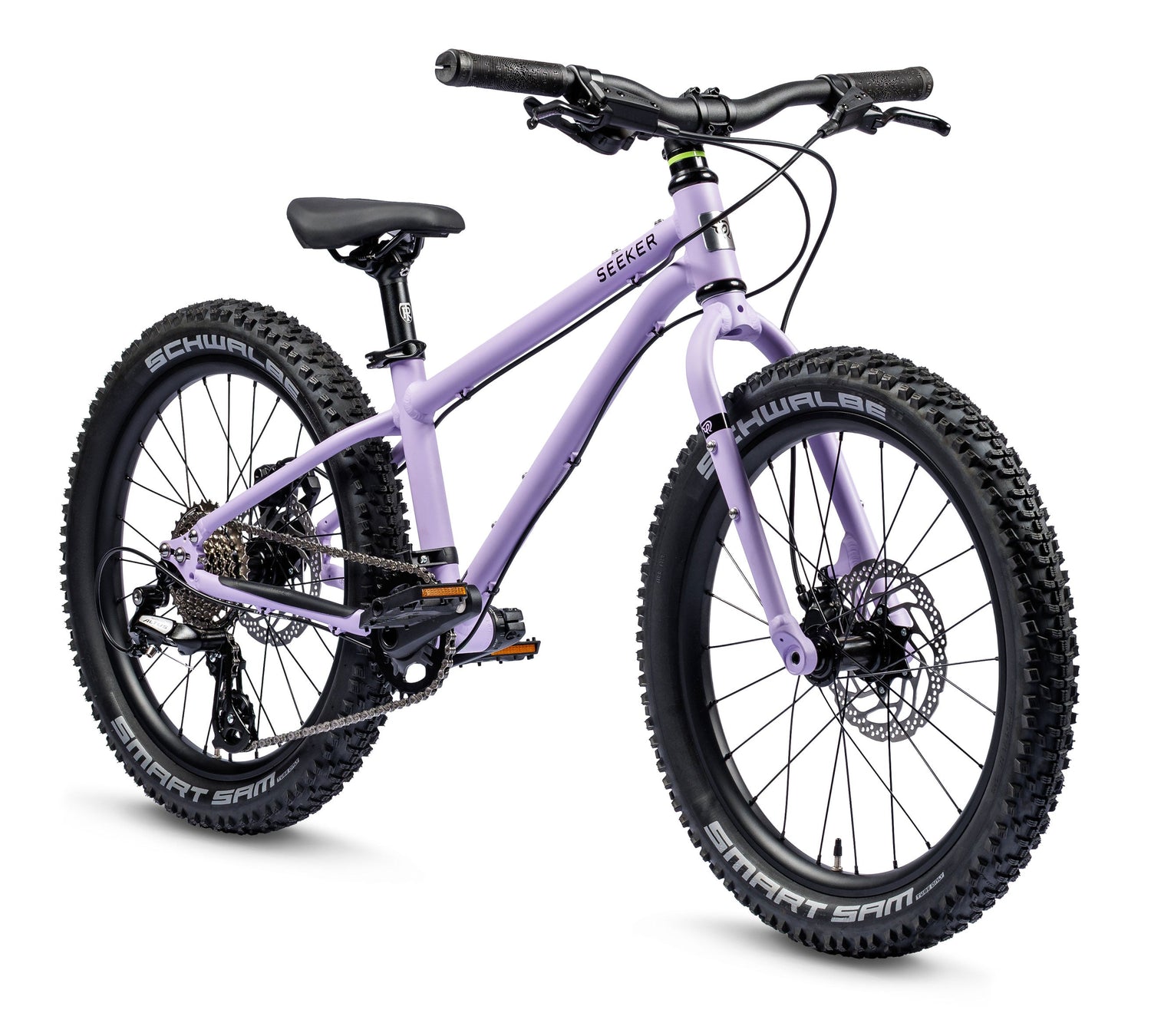

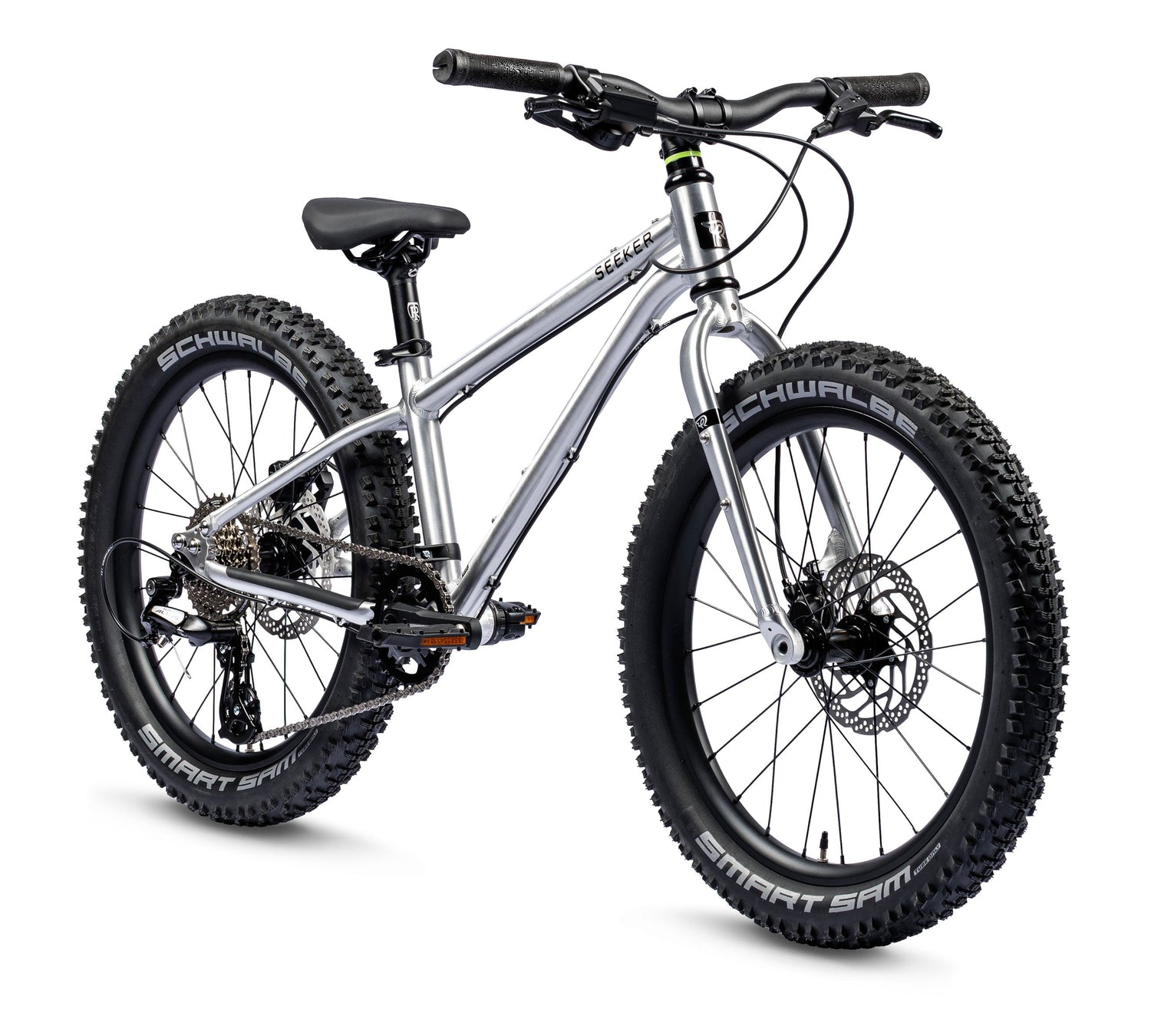

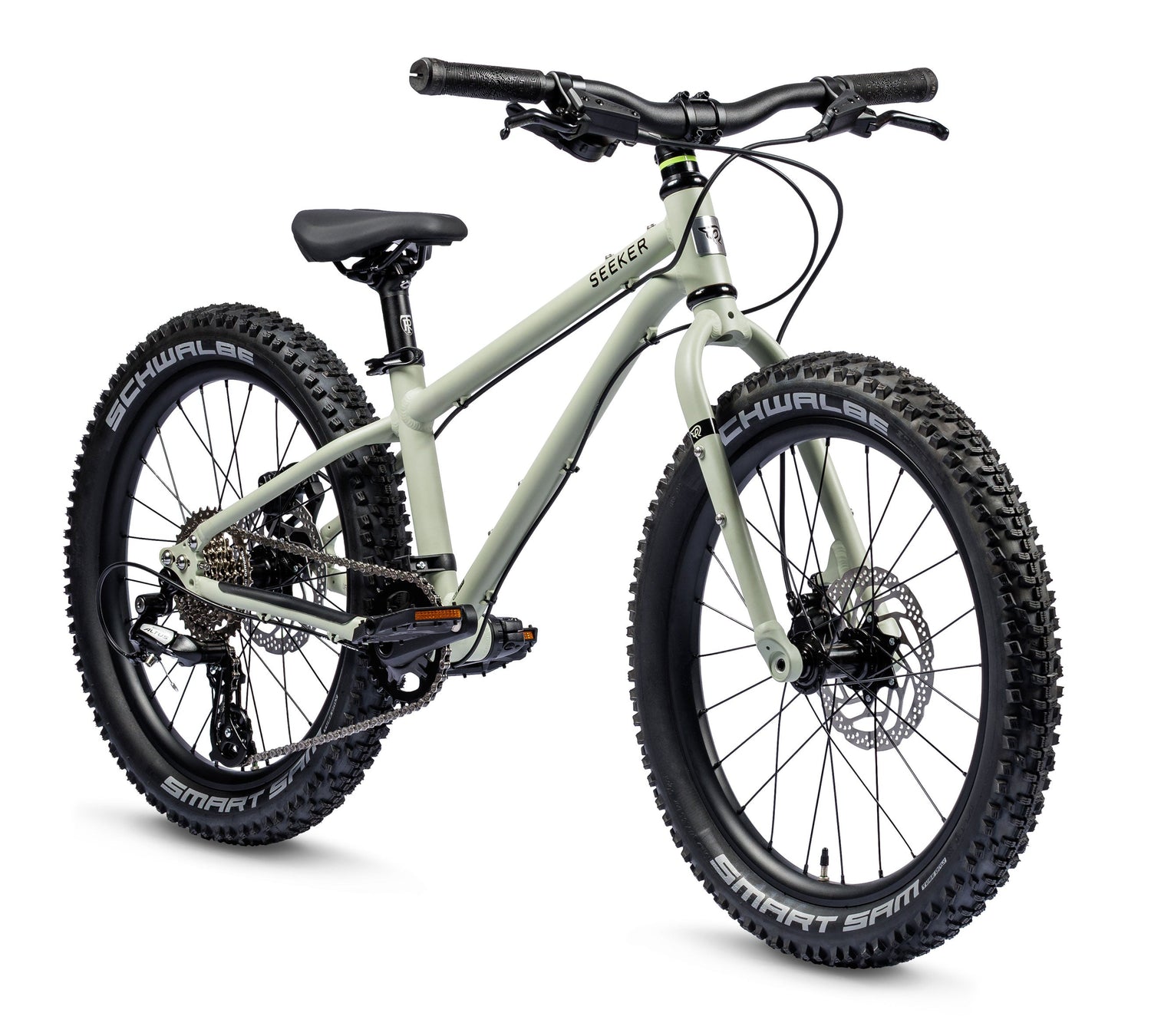

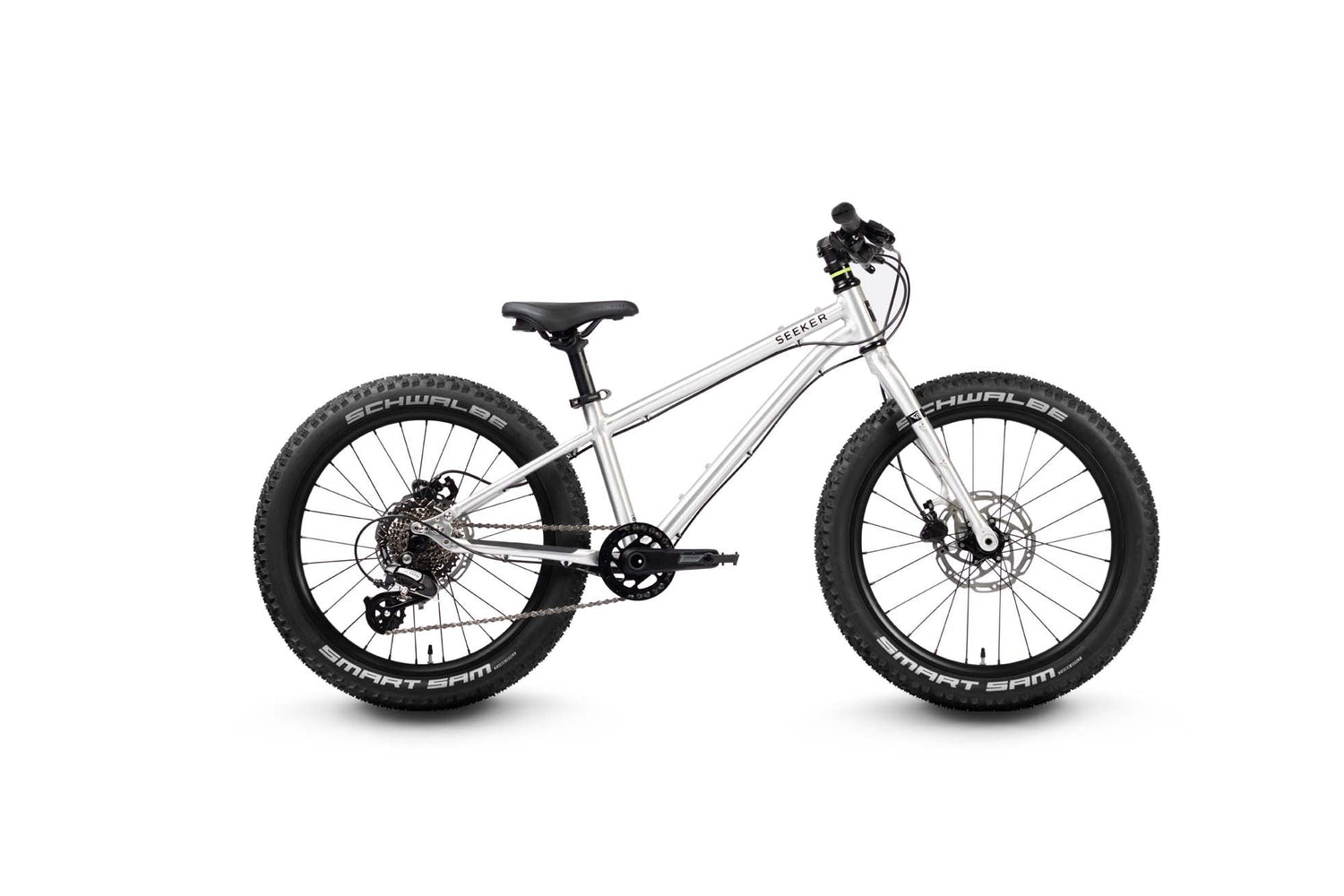

Early Rider Seeker 20

Seek and ye shall find.

The Seeker 20 is built for exploring rugged trails and off-road terrain. Continuing with the geometry up grades such a lower bottom bracket for improved stability, slacker headtube angles for precise handling and wider tire clearance  this bike is made for confident riders. The 8 Speed Shimano drivetrain with 11-36t gear ratio and short 110mm crank arms offers smooth, efficient pedalling. Equipped with powerful Tektro 160mm hydraulic disc brakes, sealed bearing wheels with bolt-thru axles, and grippy Schwalbe Smart Sam 2.3" tires, this bike is ready for any challenge and can tackle any adventure with ease and comfort.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with the rear wheel attached. The front wheel will need attaching using the skewer supplied. The handlebar will be zip tied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.

INSIDE LEG

54CM

FRAME

HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS

FORK

HAND BRUSHED AL6061, FORGED DROP OUTS

STEERER TUBE

AL6061

CRANKS

CRUX 110MM DIRECT MOUNT, NARROW Q FACTOR

PEDALS

ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING

BOTTOM BRACKET

CRUX 24MM EXTERNAL CUP

RIMS

20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE

REAR HUB

FOUR-BEARING CASSETTE FREEHUB, CNC'D AL6061

FRONT HUB

CNC’D 6 BOLT DISC, AL6061, QR SKEWER

CHAIN

KMC X8

CHAINRING

DIRECT MOUNT, NARROW WIDE 30T, ALLOY

REAR CASSETTE

SHIMANO 8-SPEED 11-34t

SHIFTER

SHIMANO 8-SPEED TRIGGER



*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

8.8KGS W/O PEDALS

DERAILLEUR

SHIMANO ALTUS 8-SPEED MECH

BRAKES

TEKTRO HYDRAULIC DISC, 160 ROTORS

LEVERS

TEKTRO SHORT REACH

FRONT TYRE

SCHWALBE SMART SAM 20x2.35", 67TPI WB

REAR TYRE

SCHWALBE SMART SAM 20x2.35", 67TPI WB

HEADSET

1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM

FORGED AL6061, 35MM REACH, 6-BOLT

BARS

560MM DOUBLE BUTTED AL6061, 25MM RISE

GRIPS

ER LOCK ON KRATON 92MM

SEAT POST

27.2MM x 250MM AL6061

SADDLE

ER WING 2, RAILED

SEAT CLAMP

QR, 31.8MM



[Table]

STANDOVER HEIGHT	54CM
FRAME	HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS
FORK	HAND BRUSHED AL6061, FORGED DROP OUTS
STEERER	TUBE AL6061
CRANKS	CRUX 110MM DIRECT MOUNT, NARROW Q FACTOR
PEDALS	ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING
BOTTOM BRACKET	CRUX 24MM EXTERNAL CUP
RIMS	20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE
REAR HUB	FOUR-BEARING CASSETTE FREEHUB, CNC'D AL6061
FRONT HUB	CNC’D 6 BOLT DISC, AL6061, QR SKEWER
AXLES	AL6061
CHAIN	KMC X8
CHAINRING	DIRECT MOUNT, NARROW WIDE 30T, STEEL
WEIGHT	8.8KGS W/O PEDALS
REAR CASSETTE	SHIMANO 8-SPEED 11-34T
BRAKES	TEKTRO HYDRAULIC DISC, 160 ROTORS
LEVERS	TEKTRO SHORT REACH
FRONT TYRE	SCHWALBE SMART SAM 20x2.35", 67TPI WB
REAR TYRE	SCHWALBE SMART SAM 20x2.35", 67TPI WB
HEADSET	1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM	FORGED AL6061, 35MM REACH
BARS	560MM DOUBLE BUTTED AL6061, 25MM RISE
GRIPS	ER LOCK ON KRATON 92MM
SEAT POST	QR, 31.8MM
SADDLE	ER WING 2, RAILED
SEAT CLAMP	ER BOLT, 28.6MM
DERAILLEUR	SHIMANO ALTUS 8-SPEED MECH

SPEC NOTICE

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice

[Table spec]

A	Wheelbase	870mm
B	Head Angle	67°
C	Seat Tube Length	270mm
D	Chainstay Length	340mm
E	Seat Tube Angle	73°
F	Standover Height	510mm
G	Top Tube Length	452.6mm
H	Head Tube Length	92mm
I	Stack	422.9mm
J	Reach	323.3mm
K	Fork Length	340mm
